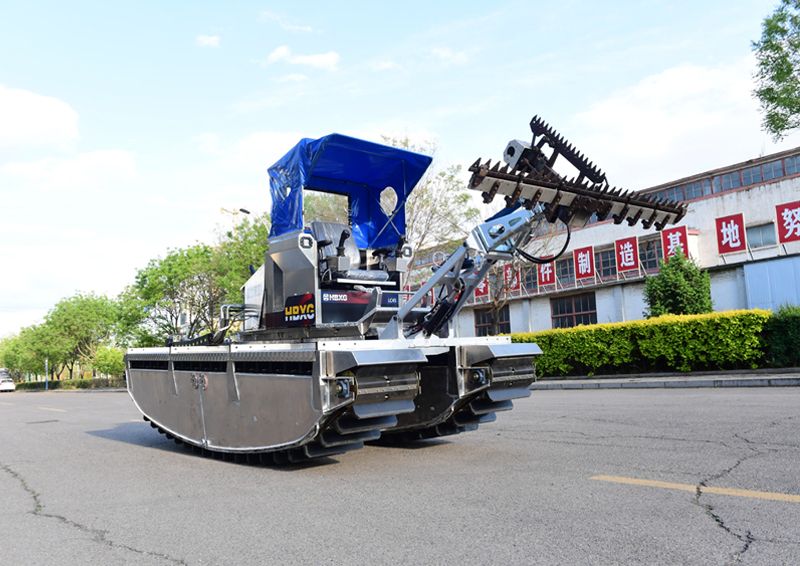

Water Cleaning Amphibious Vehicle

The Water Cleaning Amphibious Vehicle is an advanced intelligent equipment for wetland management in China, which can effectively reduce the intensity of manual labor and improve personnel work efficiency. At the same time, it is possible to enter areas that are inaccessible to humans or conventional machines, providing perfect solutions for lake, river channel, wetland, and swamp operations.

Inquire Now None

Technical Features

The main structure of the water cleaning amphibious is made of high-strength rubber fabric material, and the chassis is made of aluminum alloy material, which generates less pressure on the ground, does not damage the road surface, and is conducive to the flexible operation of equipment on the water surface. Enable the amphibious vehicle to walk both on water and in swamps and wetlands, without being limited by terrain. It can be widely used in working environments such as wetlands, swamps, rivers and lakes, and can effectively solve problems.

The amphibious aquatic machine adopts various modular tools, which are easy to assemble and have multiple functions, it can be used for various precise operations such as plant harvesting, cleaning, excavation, and water surface cleaning. And it can be used as emergency rescue equipment for flood control and post-disaster reconstruction.

Water Cleaning Amphibious Vehicle Application:

Water cleaning amphibious vehicles are equipment suitable for narrow water areas and can work on land. Besides, the amphibious vehicle has wheel type and crawler type to choose and can also be equipped with a dredge pump, cutting knife, scraper pan, collecting rake, fork, spiral cutting head and more than ten kinds of working components, which is especially suitable for water cleaning in the river, canal and other narrow areas.

Water Cleaning Amphibious Vehicle Feature:

1. It is amphibious which means it can be used both in water and on land.
2. It is very suitable for cleaning the water gate entrance and the surrounding region to dig channels and dredger silt. The manipulator can be equipped in the front for opening channels and dredging.
3. It uses a remote centralized control to control a series of works, like sailing, forward, backward, steering, turning around, digging and unloading. The rotary bearing can carry out a work range of 360 degrees.

Amphibious Vehicle-Machine Manufacturing Expert HBXG Proudly Creates.

Performance Parameters

Item	Specifications	Descriptions
Overall dimensions	4700mm×2060mm×2100mm
Weight	≤1.5t
Total power	32kW
Dredging depth	3.5m
Dredging width	800mm
Tramping distances	≤100m
Dredging pump flow	100m3/h
Dredging pump lifting distance	5m
Travel speed on the land	6km/h
Travel speed in the water	7.8km/h
Grade ability- Transversal	25 degree
Grade ability-Longitudinal	30 degree
Track width	530mm	Contitech layered fabric core wear-resistant band
Buoyancy tank	L x W x H4000 x 500 x 600 mm	Made from Aluminum， total volume of two tanks: 2.2 M3
Blade	L x H x Thinkness530 x 90 x 25 mm	high molecular material
Ground pressure of buoyancy tank	5KPa ( for swamp)	Track ground length: 3000 mm
Ground pressure of the blade	150KPa，(for swamp)	4 blades for 2 sides
Seat for operator	Adjustable, foldable, electricity heating	Grammer Engineered Seats
Electric system	Generator: 12V，40A，Battery：45Ah	CAN Bus-control
Hydraulic system	Systempressure:200Bar; Flow:　130L/min	Loading sensitive system

Our company offers water cleaning amphibious vehicles and other water cleaner equipment for cleaning lake, pond and river water, we have plenty of production equipment to make good quality water cleaning boats and equipment with qualified service to meet customer satisfaction. Get a free quote today.

Job Site Photos
