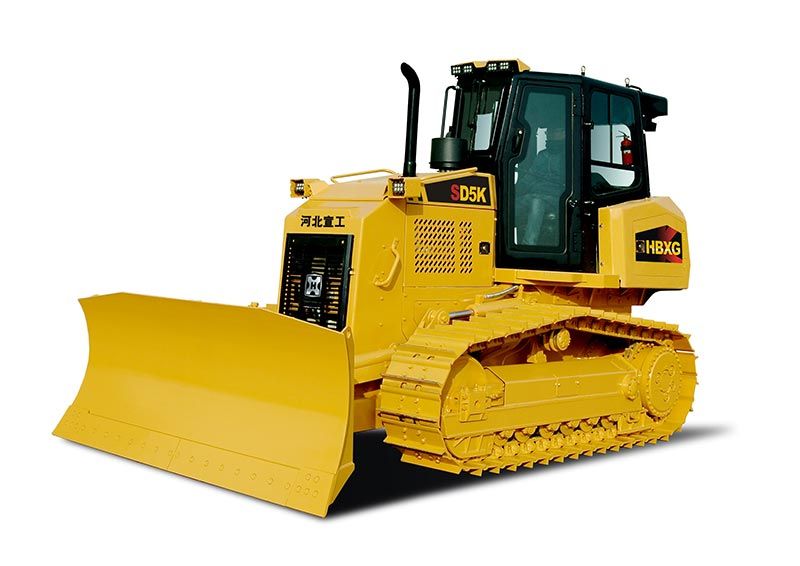

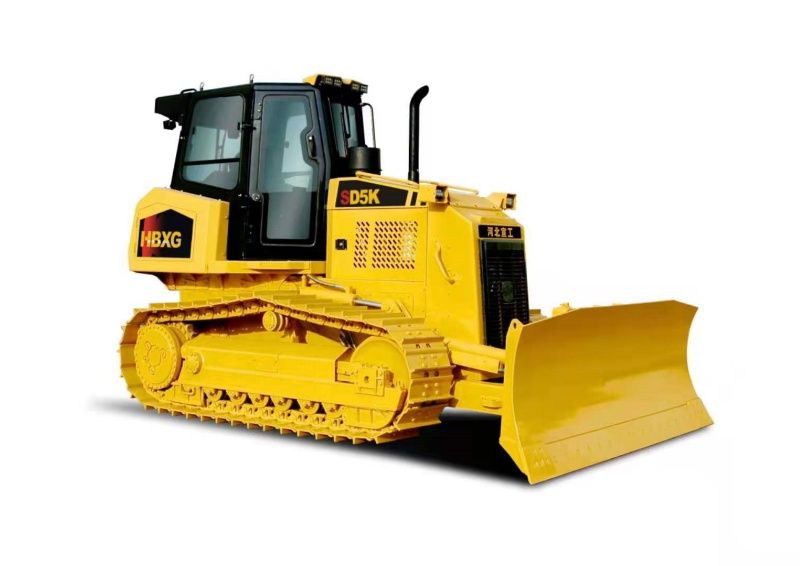

SD5K Bulldozer

SD5K is the track-type total hydraulic bulldozer with semi-rigid suspended, electronic control tier lll engine, dual-circuits electronic control hydrostatic driving system, electric control heart closing load sensing implement hydraulic system, Power-Angle-Tilting biade, automatic control independent cooling system. This model is equipped with electrical controlled engine of full power matching pattem, with stepless speed change and pivot steering function, modular design and easy to repair and maintenance; the electric proportional control walking system and work device make the operating precise and comfortable; Human-computer interaction instrument display, intelligent service system, fully sealed air conditioning cab. It can be equipped with three shanks ripper. It is ideal machine used in exquisite or heavy load working such as harbour construction, communication construction, stadium, electric power project, city and town earth moving, backfill, modelling and leveling working.

SD5K Bulldozer Specifications:

Dozer: Power-Angle-Tilting blade

Operation weight (Kg): 13100

Ground pressure(KPa): 45

Track gauge(mm): 1790

Length of track on ground(cm):  2515

Gradient: 30°/25°

Min. ground clearance (mm): 315

Dozing capacity (m³): 3.1

Blade width (mm): 3060

Blade height (mm):  950

Biade max. Lift: 915

Max. digging depth (mm): 460

Max. tilt of bilde: 410mm, 7°

Overall dimensions (mm): 4922x3060x2999

Engine Specifications:

Type: WP6G130E330

Rated revolution (rpm): 2200

Net rated power(KW/HP) :97.5/133

Max. torque (N•m/rpm): 570/1450

Rated fuel consumption(g/KW•h):190

Number of Cylinders: 6-105x130

Displacement: 6.75

Fuel tank capacity: 195

Torque backup(%):≥20%

Driving System Specifications:

Double-circuit electric joystick hydraulic system

Wet-type multi-disc brake

Modularize One-stage planetary+One-stage spur reduction gear mechanism

Palm dictate-Electric joystick

Intelligent service system

Electric Control Implements a Hydraulic System

Max. system pressure (MPa): 19

Pump type: Variable displacement piston pump

System output（L/min): 125

Undercarriage System

Type: Normal track type semi-rigid suspended

Number of track rollers (each side): 7

Number of carrier rollers (each side): 1

Pitch(mm): 190

Width of shoe(mm): 510

Gear

Forward  (Km/h): 0-10.5

Backward (Km/h): 0-10.5

How hydrostatic drives make bulldozers safer

Dynamic braking means that the operator of a hydrostatic dozer has only one brake pedal to worry about. In contrast, a powershift dozer has both a deceleration pedal and a brake pedal. When you release the throttle on a hydrostatic-driven dozer, the hydraulic pressure in the system stops the machine. This means that the dozer will not roll backward when the operator stops it on a slope.

Smooth operator: The hydrostatic drive allows the operator of the pipe-laying dozer to place the pipe into the trench with ease, which is critical when there are workers in the trench to help place the pipe. Continuously variable speed allows the operator to move the machine slowly without the rush of upshifting or downshifting.

Easier to operate: Hydrostatic dozers help inexperienced operators work faster and make experienced operators more productive. There's nothing to notice in the cab, as these sophisticated machines take care of power management and, in some cases, blade control. This allows him or her to pay more attention to nearby machines and people, helping to improve job site safety.
